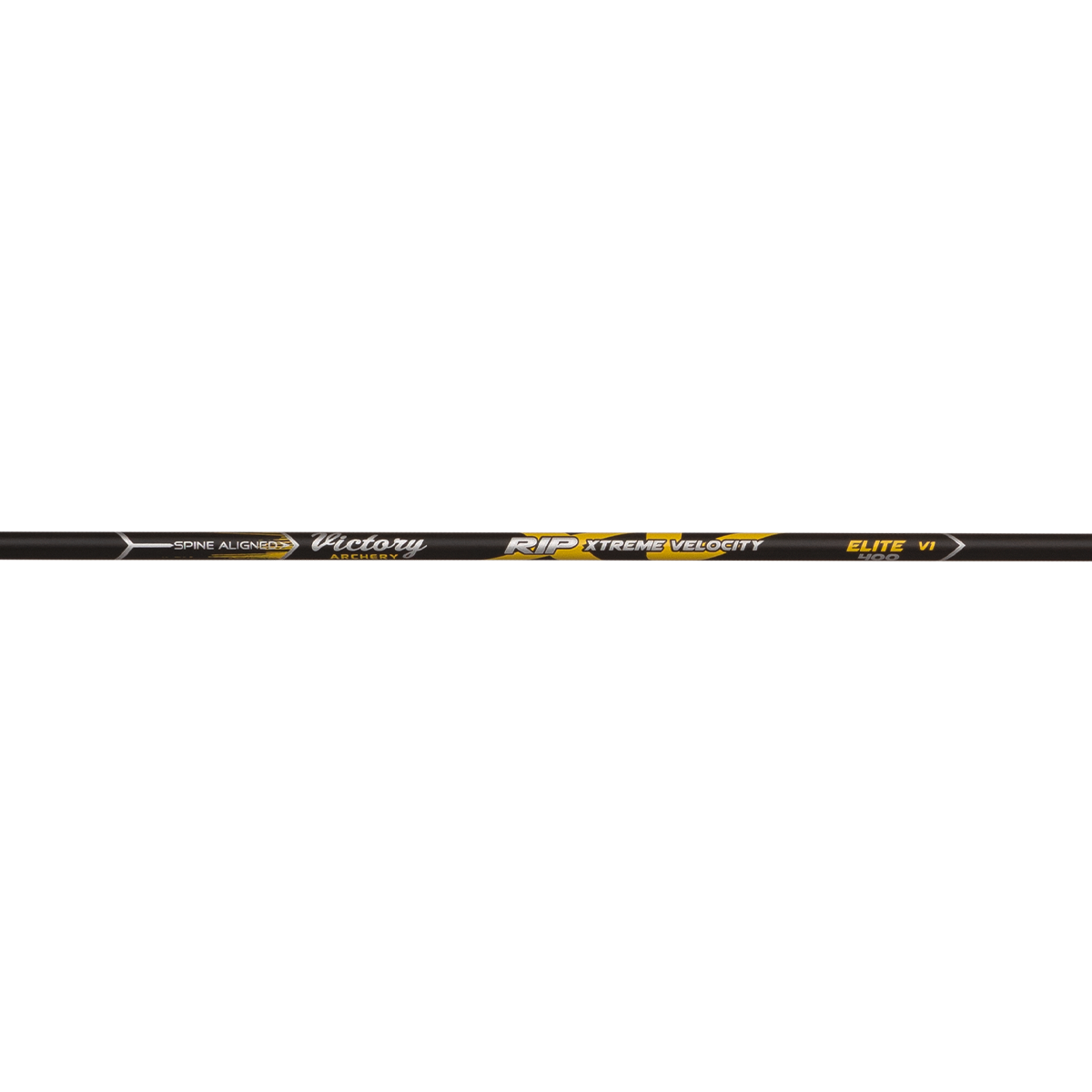

Victory RIP XV .204 Hunting Arrow Shafts – 12 Pack

Victory RIP XV .204 Hunting Arrow Shafts are lightweight, small-diameter carbon hunting shafts engineered for exceptional speed, flat trajectory and long-range accuracy. Built around Victory's .204" platform, the RIP XV reduces the amount of shaft exposed to crosswinds while its lightweight high-modulus carbon construction helps deliver extreme velocity downrange.

The RIP XV combines its lightweight 100% carbon fibre construction with digital spine alignment, precision weight matching and Victory's ICE nano-ceramic coating. Choose from Elite / V1, Gamer / V3 or Sport / V6 straightness grades and 200, 250, 300, 350, 400 or 500 spine to build a fast, accurate hunting arrow around your bow and intended application.

Why You'll Love It

• .204" small-diameter hunting shaft
• Lightweight design engineered for extreme arrow speed
• 100% high-modulus carbon fibre construction
• Designed for long-range accuracy
• Flat-trajectory hunting-arrow platform
• Small diameter helps reduce wind deflection
• Digitally spine aligned
• Each dozen weight matched to ±0.5 grains
• ICE nano-ceramic coating
• Includes 21-grain SHOK aluminum inserts
• Includes 8-grain AAE .204 nocks
• SHOK system provides front-end impact protection
• Available in Elite / V1, Gamer / V3 and Sport / V6 grades
• Available in 200, 250, 300, 350, 400 and 500 spine
• Optional heavier SHOK components and .204 back weights available
• 12 shafts per pack

Features

• Series: Victory RIP XV
• Diameter: .204" small-diameter platform
• Construction: 100% high-modulus carbon fibre
• Primary Design: Speed & Long-Range Accuracy
• Spine Alignment: Digitally spine aligned
• Weight Matching: ±0.5 grains per dozen
• Coating: ICE nano-ceramic
• Available Grades: Elite / V1, Gamer / V3 and Sport / V6
• Available Spines: 200, 250, 300, 350, 400 and 500
• Included Insert: 21-grain SHOK aluminum
• Included Nock: 8-grain AAE .204

What's Included?

• 12 x Victory RIP XV .204 Carbon Arrow Shafts
• 12 x SHOK Aluminum Inserts – 21 Grain
• 12 x AAE .204 Nocks – 8 Grain

Please Note: These are unfletched arrow shafts, not complete ready-to-shoot arrows. The shafts require appropriate cutting, insert installation and fletching before use as finished arrows.

Arrow Grades & Spine Specifications

Victory RIP XV shafts are available in three precision grades and six spine options. Choose your Victory grade based on the desired straightness tolerance, then select the appropriate spine for your bow and finished hunting-arrow setup.

Elite / V1 – ±.001"

Elite / V1 provides the tightest straightness tolerance available for the RIP XV at ±.001", making it the highest-precision grade offered in this shaft.

Gamer / V3 – ±.003"

Gamer / V3 provides a ±.003" straightness tolerance, offering an intermediate precision option between Elite / V1 and Sport / V6.

Sport / V6 – ±.006"

Sport / V6 provides a ±.006" straightness tolerance while retaining the RIP XV's core lightweight carbon construction, digital spine alignment, weight matching and ICE coating.

Always select arrow spine according to your complete bow and arrow setup. Bow speed, draw weight, finished shaft length, broadhead or point weight, insert weight and other components can affect proper spine selection.

.204 Small-Diameter Hunting Performance

The RIP XV uses Victory's .204" small-diameter platform, providing less surface area for crosswinds to act against than a larger-diameter hunting shaft.

Reduced wind exposure becomes particularly valuable when hunting at extended distances or shooting in changing conditions. Combined with the RIP XV's lightweight construction, the small-diameter design provides a highly aerodynamic foundation for a fast hunting-arrow build.

Engineered for Extreme Velocity

The RIP XV was developed specifically around two primary performance goals: speed and long-range accuracy.

Victory uses high-modulus carbon construction to keep shaft weight low across the RIP XV spine range. With shaft weights ranging from 9.3 GPI in 200 spine down to only 5.1 GPI in 500 spine, arrow builders have significant flexibility when creating a fast, flat-shooting hunting setup.

The lightweight shaft can help reduce arrow flight time and produce a flatter trajectory when appropriately matched to the bow and finished-arrow configuration.

Flat Trajectory for Long-Range Hunting

One of the RIP XV's defining characteristics is its extremely lightweight shaft construction. Reducing shaft weight can increase arrow velocity and flatten trajectory, helping reduce the amount of elevation correction required as shooting distance increases.

Combined with the aerodynamic advantages of the .204" diameter, this makes the RIP XV particularly well suited to western hunting, mountain hunting and other situations where longer shots may be encountered.

21-Grain SHOK Aluminum Inserts Included

Each RIP XV shaft includes a lightweight 21-grain SHOK aluminum insert.

The lightweight insert complements the RIP XV's speed-focused design while providing the benefits of Victory's SHOK front-end system. The SHOK system incorporates an impact-protection sleeve designed to protect the front of the carbon shaft and increase impact strength and durability.

The system also gives arrow builders additional options for adjusting front-end weight and FOC when a heavier finished configuration is desired.

8-Grain AAE .204 Nocks Included

Each RIP XV shaft includes an 8-grain AAE .204 nock sized for Victory's small-diameter shaft platform.

With the 21-grain SHOK inserts and .204 nocks supplied with the dozen, you receive the primary front and rear shaft components required before cutting, assembling and fletching your custom hunting arrows.

SHOK Broadhead Adaptor

The SHOK system accepts broadheads with a standard 8-32 thread, allowing hunters to use a broad selection of conventional hunting broadheads.

The exclusive impact-protection sleeve helps reinforce the front of the carbon shaft against fracturing while the hard-anodized aluminum construction provides a lightweight connection between the shaft and broadhead.

Digitally Spine Aligned

Every RIP XV shaft is digitally spine aligned to support increased accuracy and shot-to-shot consistency.

Consistent spine orientation helps minimize shaft-to-shaft variation and provides a more uniform foundation when building, tuning and broadhead testing a matched set of hunting arrows.

Weight Matched to ±0.5 Grains

Each dozen RIP XV shafts is weight matched to ±0.5 grains.

Closely matched shaft weights help reduce unnecessary variation throughout the dozen and provide a consistent starting point for finished arrow weight, trajectory and grouping.

ICE Nano-Ceramic Coating

Victory applies its ICE nano-ceramic coating to the RIP XV shaft surface.

The slick coating is designed to improve penetration while also making arrows easier to remove from targets during practice, sight-in and tuning sessions.

Build for Speed or Increase FOC

The included 21-grain SHOK aluminum insert provides a lightweight starting point that complements the RIP XV's extreme-velocity design.

Hunters wanting additional front-end weight can move to heavier compatible components. This allows the RIP XV platform to be configured around different finished arrow weights, broadheads and FOC goals.

This versatility gives arrow builders the ability to start with an exceptionally lightweight carbon shaft and then determine how much front-end weight is appropriate for their individual hunting setup.

Optional RIP XV Components

Victory offers additional components for bowhunters who want to customize the RIP XV's finished weight and FOC:

• 50-grain SHOK TL204 aluminum insert
• 60-grain SHOK stainless-steel insert
• 75-grain SHOK TL204 stainless-steel insert
• .204 back weights

These optional components are not included with this 12-pack unless otherwise specified.

Perfect For

• Speed-focused hunting-arrow builds
• Long-range bowhunting
• Western bowhunting
• Mountain hunting
• Spot-and-stalk hunting
• Elk hunting
• Mule deer hunting
• Whitetail hunting
• Sheep hunting
• Small-diameter hunting-arrow builds
• Flat-trajectory hunting setups
• Hunters looking to reduce wind deflection
• Custom arrow building
• Broadhead hunting-arrow builds
• Arrow builders wanting a lightweight carbon shaft

Specifications

• Brand: Victory Archery
• Model: RIP XV
• Product Type: Small-Diameter Hunting Arrow Shafts
• Quantity: 12 Shafts
• Configuration: Unfletched Shafts
• Construction: 100% High-Modulus Carbon Fibre
• Inside Diameter: .204"
• Full Shaft Length: 31"
• Primary Design: Speed & Long-Range Accuracy
• Spine Alignment: Digitally Spine Aligned
• Weight Matching: ±0.5 Grains Per Dozen
• Coating: ICE Nano-Ceramic
• Included Insert: SHOK Aluminum – 21 Grain
• Included Nock: AAE .204 – 8 Grain
• Available Grades: Elite / V1, Gamer / V3 & Sport / V6
• Elite / V1 Straightness: ±.001"
• Gamer / V3 Straightness: ±.003"
• Sport / V6 Straightness: ±.006"
• Available Spines: 200, 250, 300, 350, 400 & 500
• 200 Spine: 9.3 GPI | .267" OD
• 250 Spine: 8.1 GPI | .260" OD
• 300 Spine: 7.1 GPI | .255" OD
• 350 Spine: 6.4 GPI | .251" OD
• 400 Spine: 5.9 GPI | .247" OD
• 500 Spine: 5.1 GPI | .242" OD

Why Buy This?

The Victory RIP XV is purpose-built for bowhunters who prioritize speed, flat trajectory and long-range accuracy.

Its lightweight .204" small-diameter carbon construction reduces the shaft profile exposed to crosswinds while allowing arrow builders to achieve extremely low finished shaft weights compared with many conventional hunting-arrow platforms.

Victory adds digital spine alignment and ±0.5-grain dozen weight matching to provide a consistent foundation for building a matched set of hunting arrows.

Choose from Elite / V1 ±.001", Gamer / V3 ±.003" or Sport / V6 ±.006" straightness grades and an extensive 200 through 500 spine range to match the shaft to your bow and finished-arrow configuration.

With lightweight 21-grain SHOK aluminum inserts and 8-grain AAE .204 nocks included, the RIP XV provides the primary components needed to begin building a high-velocity small-diameter hunting arrow.

Frequently Asked Questions

What comes with the Victory RIP XV 12-pack?

The pack includes 12 Victory RIP XV .204 carbon shafts, 12 21-grain SHOK aluminum inserts and 12 8-grain AAE .204 nocks.

Are these complete ready-to-shoot arrows?

No. These are unfletched arrow shafts. They require appropriate cutting, insert installation and fletching before use as finished arrows.

Are vanes included?

No. Vanes are not included with this shaft-only configuration.

What is the difference between Elite / V1, Gamer / V3 and Sport / V6?

The grades represent different straightness tolerances. Elite / V1 is ±.001", Gamer / V3 is ±.003" and Sport / V6 is ±.006".

What spines are available?

Victory RIP XV shafts are available here in 200, 250, 300, 350, 400 and 500 spine.

What is the GPI of each RIP XV spine?

The RIP XV shaft weights are 200 spine – 9.3 GPI, 250 spine – 8.1 GPI, 300 spine – 7.1 GPI, 350 spine – 6.4 GPI, 400 spine – 5.9 GPI and 500 spine – 5.1 GPI.

What are the outside diameters?

The shaft outside diameters are .267" for 200 spine, .260" for 250 spine, .255" for 300 spine, .251" for 350 spine, .247" for 400 spine and .242" for 500 spine. All six options use a .204" inside diameter.

How do I choose the correct spine?

Correct arrow spine depends on your complete bow setup, including bow speed, draw weight, finished shaft length, broadhead or point weight, insert weight and other components. Consult Victory's current spine-selection recommendations or have your setup professionally matched before selecting a spine.

What diameter is the Victory RIP XV?

The RIP XV uses Victory's .204" small-diameter platform, designed to reduce wind deflection while maintaining excellent speed and penetration.

How long are RIP XV shafts?

Full-length RIP XV shafts are 31 inches before custom cutting.

Why is the RIP XV so light?

The RIP XV uses lightweight high-modulus carbon construction specifically developed around speed and long-range accuracy. Depending on spine, shaft weight ranges from 9.3 GPI down to only 5.1 GPI.

Are RIP XV shafts spine aligned?

Yes. Every shaft is digitally spine aligned to support increased accuracy and shot-to-shot consistency.

Are RIP XV shafts weight matched?

Yes. Each dozen is weight matched to within approximately ±0.5 grains.

What does the ICE coating do?

Victory's ICE nano-ceramic coating creates a slick shaft surface designed to improve penetration and make arrows easier to remove from targets.

Do RIP XV shafts include inserts?

Yes. Each shaft includes a lightweight 21-grain SHOK aluminum insert.

Do RIP XV shafts include nocks?

Yes. Each shaft includes an 8-grain AAE .204 nock.

Can I use standard broadheads?

Yes. The SHOK adaptor accepts broadheads using a standard 8-32 thread, providing compatibility with a wide selection of hunting broadheads.

Can I increase the RIP XV's FOC?

Yes. Victory offers heavier compatible SHOK components and .204 back weights, allowing arrow builders to increase front-end weight and tune FOC beyond the lightweight 21-grain included insert.

What is the difference between Victory RIP XV and RIP?

Both use Victory's .204" small-diameter platform. The RIP XV is specifically optimized for low shaft weight, extreme velocity, flat trajectory and long-range accuracy, while the standard RIP is designed around a broader balance of speed, durability, kinetic energy and penetration.

What is the difference between RIP XV and RIP TKO?

Both are .204" small-diameter hunting shafts, but they emphasize different performance characteristics. The RIP XV prioritizes lightweight construction and extreme velocity, while the RIP TKO uses MaxxKe 3K carbon weave technology and is designed around increased kinetic-energy performance, fast recovery and TKO carbon construction.

Extreme Velocity. Flat Trajectory. Long-Range Accuracy.

Victory RIP XV .204 Hunting Arrow Shafts provide an exceptionally lightweight small-diameter platform for bowhunters prioritizing speed and long-range performance. With digital spine alignment, precision weight matching, ICE nano-ceramic coating, three straightness grades, six spine options, 21-grain SHOK aluminum inserts and 8-grain AAE .204 nocks included, each dozen provides a premium foundation for a high-velocity custom hunting-arrow build.
