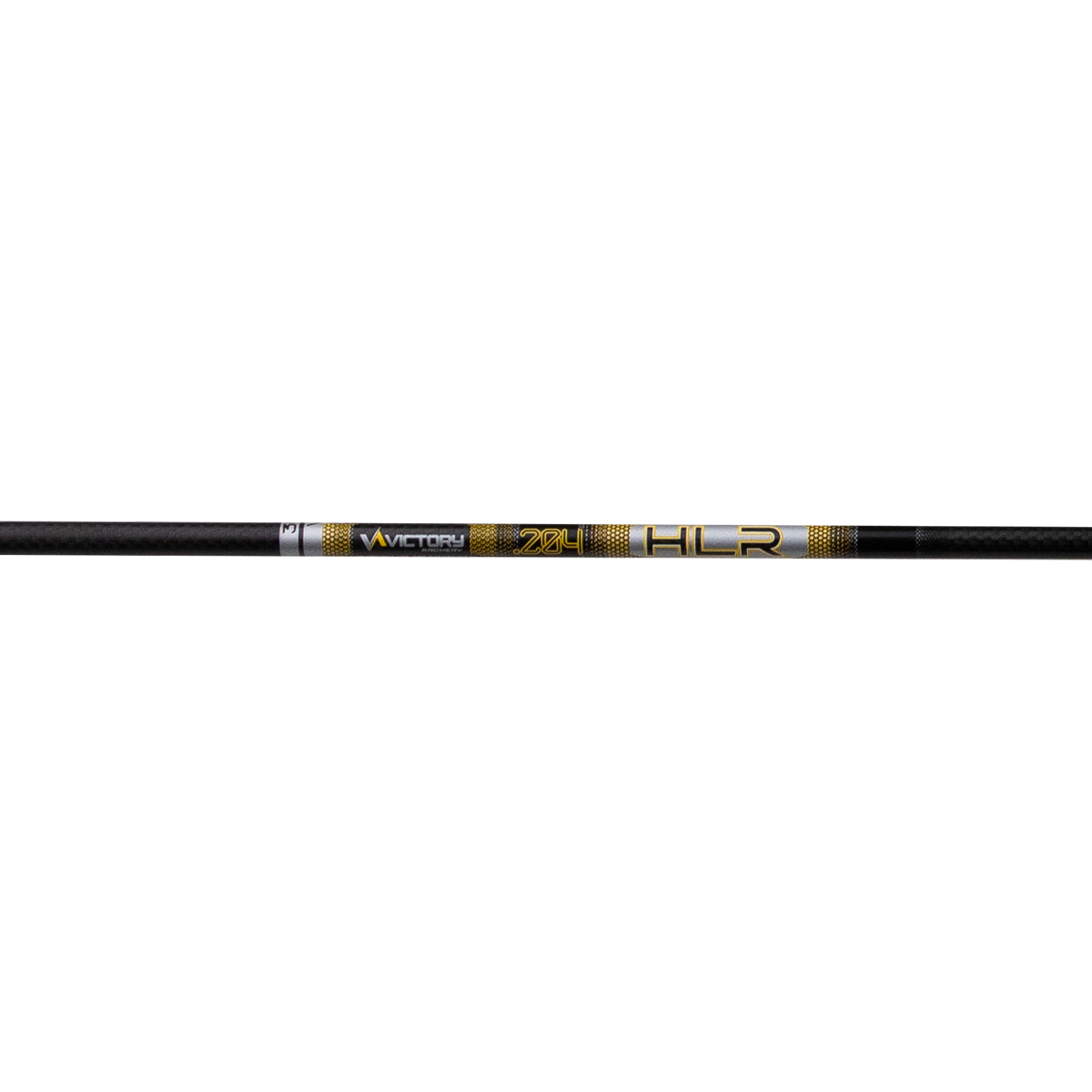

Victory HLR .204 Hunting Arrow Shafts – 12 Pack

Victory HLR .204 Hunting Arrow Shafts are high-performance small-diameter carbon shafts engineered to deliver a balanced combination of speed, power, durability and long-range accuracy. Built around Victory's .204" platform, the HLR reduces the shaft profile exposed to crosswinds while providing the penetration and durability required for demanding hunting conditions.

High-modulus carbon construction combines with 1.5K MaxxKe carbon weave technology and a 90° carbon weave pattern to create a fast, stable hunting shaft designed for quick recovery in flight and a flat trajectory. Add digital spine alignment, ±0.5-grain dozen weight matching, ICE nano-ceramic coating and an included 50-grain stainless-steel SHOK insert, and the HLR becomes a versatile platform for serious hunting-arrow builds.

Why You'll Love It

• .204" small-diameter hunting shaft
• 100% high-modulus carbon fibre construction
• Engineered for speed, power and durability
• Designed for long-range hunting accuracy
• Small diameter helps reduce wind deflection
• 1.5K MaxxKe carbon weave technology
• 90° carbon weave pattern
• Designed for quick recovery in flight
• Flat-trajectory hunting-arrow platform
• Digitally spine aligned
• Each dozen weight matched to ±0.5 grains
• ICE nano-ceramic coating
• Includes 50-grain stainless-steel SHOK inserts
• Includes 9-grain AAE .204 nocks
• Compatible with Victory .204 back weights for FOC tuning
• Available in Elite / V1, Gamer / V3 and Sport / V6 grades
• Available in 200, 250, 300, 350, 400 and 500 spine
• 12 shafts per pack

Features

• Series: Victory HLR
• Diameter: .204" Small Diameter
• Construction: 100% High-Modulus Carbon Fibre
• Carbon Technology: 1.5K MaxxKe Carbon Weave
• Carbon Weave: 90° Pattern
• Performance Focus: Speed, Strength & Long-Range Accuracy
• Spine Alignment: Digitally Spine Aligned
• Weight Matching: ±0.5 Grains Per Dozen
• Coating: ICE Nano-Ceramic
• Included Insert: 50-Grain Stainless-Steel SHOK
• Included Nock: 9-Grain AAE .204
• Available Grades: Elite / V1, Gamer / V3 & Sport / V6
• Available Spines: 200, 250, 300, 350, 400 & 500

What's Included?

• 12 x Victory HLR .204 Carbon Arrow Shafts
• 12 x SHOK Stainless-Steel Inserts – 50 Grain
• 12 x AAE .204 Nocks – 9 Grain

Please Note: These are unfletched arrow shafts, not complete ready-to-shoot arrows. They require appropriate cutting, insert installation and fletching before use as finished arrows.

Arrow Grades & Spine Specifications

Victory HLR shafts are available in three straightness grades and six spine options, giving bowhunters the ability to select both the precision grade and dynamic spine appropriate for their bow and finished arrow configuration.

Elite / V1 – ±.001"

Elite / V1 provides the tightest straightness tolerance offered for the HLR at ±.001", making it the premium precision grade in the lineup.

Gamer / V3 – ±.003"

Gamer / V3 provides a ±.003" straightness tolerance and offers an intermediate option between the Elite / V1 and Sport / V6 grades.

Sport / V6 – ±.006"

Sport / V6 provides a ±.006" straightness tolerance while retaining the HLR's small-diameter construction, carbon technology and other core performance features.

Proper arrow spine depends on your complete bow setup, including draw weight, draw length, bow speed, finished shaft length, point or broadhead weight and insert weight. Select spine according to your complete finished-arrow configuration.

.204 Small-Diameter Hunting Performance

The HLR uses Victory's .204" small-diameter platform to reduce the amount of shaft surface exposed to crosswinds. Less wind exposure can help reduce lateral deflection and improve downrange consistency when hunting in changing conditions.

The narrow shaft profile also supports penetration by reducing the diameter of the carbon shaft travelling behind the broadhead, making the HLR a strong platform for hunters seeking both speed and penetration.

1.5K MaxxKe Carbon Weave Technology

The HLR combines a high-modulus carbon structure with 1.5K MaxxKe carbon weave technology. This construction is engineered around quick arrow recovery, consistent spine behaviour and efficient long-range flight.

Reducing unwanted shaft movement after launch allows the arrow to stabilize quickly, helping support the HLR's combination of speed and long-range accuracy.

90° Carbon Weave Construction

The HLR incorporates a distinctive 90° carbon weave pattern into its carbon construction.

This woven structure complements the high-modulus carbon core and gives the HLR its combination of lightweight performance, strength and durability for demanding hunting applications.

Built to Hunt Long Range

HLR stands for a hunting-arrow platform built around long-range performance. Its combination of relatively low shaft weight, .204" diameter and advanced carbon construction is designed to produce high velocity and a flat trajectory.

A flatter trajectory can reduce the amount of elevation correction required as distance increases, while the small shaft diameter helps reduce the effects of crosswinds.

For western hunting, mountain hunting and other situations where shot distances and wind conditions can vary significantly, those characteristics provide a versatile foundation for a precision hunting-arrow build.

50-Grain Stainless-Steel SHOK Insert Included

Each HLR shaft includes a 50-grain stainless-steel SHOK insert, adding substantial front-end strength and weight to the finished arrow.

The SHOK system incorporates an impact-protection sleeve designed to reinforce the front of the carbon shaft and increase impact resilience and durability.

The 50-grain stainless-steel construction also adds front-end mass to help increase FOC and penetration while maintaining the HLR's speed-oriented shaft design.

Adjustable FOC with Victory Back Weights

The HLR's SHOK system can be combined with compatible Victory .204 back weights, allowing arrow builders to fine-tune front-of-centre balance without replacing the entire insert system.

This gives bowhunters additional control over finished arrow weight, FOC and broadhead flight while retaining the HLR shaft's fundamental speed and long-range characteristics.

9-Grain AAE .204 Nocks Included

Each HLR shaft includes a 9-grain AAE .204 nock sized for the small-diameter shaft platform.

With the 50-grain stainless-steel SHOK inserts and AAE nocks supplied with the dozen, you receive the primary front and rear components required before cutting, assembling and fletching your custom hunting arrows.

SHOK Broadhead Adaptor

The SHOK system accepts standard 5/16" broadheads with an 8-32 thread, allowing the HLR to be paired with a broad selection of conventional hunting broadheads.

The impact-protection sleeve helps reinforce the carbon at the front of the arrow, while taper-lock machining is designed to improve strength and component concentricity.

Digitally Spine Aligned

Every HLR shaft is digitally spine aligned to promote increased accuracy and shot-to-shot consistency.

Consistent spine orientation provides a more uniform foundation when cutting, fletching, tuning and broadhead testing a matched set of hunting arrows.

Weight Matched to ±0.5 Grains

Each dozen HLR shafts is weight matched to ±0.5 grains.

Closely matched shaft weights reduce unnecessary variation throughout the dozen and provide a consistent starting point when building arrows to a specific finished weight and balance.

ICE Nano-Ceramic Coating

Victory applies its ICE nano-ceramic coating to the HLR shaft surface.

The slick coating is designed to improve penetration while also making arrows easier to remove from targets during practice, sight-in and tuning sessions.

Build the HLR Around Your Hunting Setup

Because these HLR shafts are supplied unfletched, bowhunters and arrow builders can customize finished shaft length, vane configuration, broadhead choice and front-end weight around the intended hunting application.

Choose between Elite / V1, Gamer / V3 and Sport / V6 straightness grades and select from 200, 250, 300, 350, 400 or 500 spine.

From there, the included 50-grain stainless-steel SHOK system and optional Victory components provide additional flexibility for balancing speed, finished arrow weight, FOC, broadhead flight and penetration.

Optional HLR Components

• 60-grain SHOK stainless-steel insert
• 21-grain SHOK aluminum insert
• 50-grain SHOK TL204 insert
• 75-grain SHOK TL204 insert
• .204 back weights

Optional components are not included with this 12-pack unless otherwise specified.

Perfect For

• Long-range bowhunting
• Western hunting
• Mountain hunting
• Spot-and-stalk hunting
• Elk hunting
• Moose hunting
• Mule deer hunting
• Whitetail hunting
• Sheep hunting
• Small-diameter hunting-arrow builds
• Speed-focused hunting setups
• Penetration-focused arrow builds
• Adjustable-FOC hunting arrows
• Broadhead hunting-arrow builds
• Custom arrow building
• Hunters looking to reduce wind deflection

Specifications

• Brand: Victory Archery
• Model: HLR
• Product Type: Small-Diameter Hunting Arrow Shafts
• Quantity: 12 Shafts
• Configuration: Unfletched Shafts
• Construction: 100% High-Modulus Carbon Fibre
• Inside Diameter: .204"
• Full Shaft Length: 31"
• Carbon Technology: 1.5K MaxxKe Carbon Weave
• Carbon Weave: 90°
• Spine Alignment: Digitally Spine Aligned
• Weight Matching: ±0.5 Grains Per Dozen
• Coating: ICE Nano-Ceramic
• Included Insert: SHOK Stainless Steel – 50 Grain
• Included Nock: AAE .204 – 9 Grain
• Available Grades: Elite / V1, Gamer / V3 & Sport / V6
• Elite / V1 Straightness: ±.001"
• Gamer / V3 Straightness: ±.003"
• Sport / V6 Straightness: ±.006"
• Available Spines: 200, 250, 300, 350, 400 & 500
• 200 Spine: 9.8 GPI | .271" OD
• 250 Spine: 8.7 GPI | .265" OD
• 300 Spine: 8.1 GPI | .261" OD
• 350 Spine: 7.3 GPI | .256" OD
• 400 Spine: 6.9 GPI | .254" OD
• 500 Spine: 6.5 GPI | .251" OD

Why Buy This?

The Victory HLR fills an important position between an ultralight speed shaft and a heavier penetration-focused hunting arrow. It is engineered to provide a balance of speed, strength, durability and long-range accuracy.

Its .204" small-diameter construction helps reduce wind exposure, while high-modulus carbon and 1.5K MaxxKe carbon weave technology provide a lightweight, durable platform designed for fast recovery and flat trajectory.

Victory adds digital spine alignment and ±0.5-grain dozen weight matching to provide a consistent foundation for building and tuning a matched set of hunting arrows.

The included 50-grain stainless-steel SHOK insert provides a strong front-end component with additional mass for FOC and penetration, while compatibility with Victory back weights allows further tuning.

With three straightness grades and six spine options from 200 through 500, the HLR can be configured for a wide range of compound-bow and hunting-arrow setups.

Frequently Asked Questions

What comes with the Victory HLR 12-pack?

The pack includes 12 Victory HLR .204 carbon shafts, 12 50-grain stainless-steel SHOK inserts and 12 9-grain AAE .204 nocks.

Are these complete ready-to-shoot arrows?

No. These are unfletched arrow shafts. They require appropriate cutting, insert installation and fletching before use as finished arrows.

Are vanes included?

No. Vanes are not included with this shaft-only configuration.

What straightness grades are available?

The HLR is offered in Elite / V1 ±.001", Gamer / V3 ±.003" and Sport / V6 ±.006" straightness grades.

What spines are available?

HLR shafts are available in 200, 250, 300, 350, 400 and 500 spine.

What is the GPI of each HLR spine?

The shaft weights are 200 – 9.8 GPI, 250 – 8.7 GPI, 300 – 8.1 GPI, 350 – 7.3 GPI, 400 – 6.9 GPI and 500 – 6.5 GPI.

What are the HLR outside diameters?

The outside diameters are .271" for 200 spine, .265" for 250, .261" for 300, .256" for 350, .254" for 400 and .251" for 500. All use a .204" inside diameter.

How long are Victory HLR shafts?

Full-length HLR shafts are 31 inches before custom cutting.

How do I choose the correct spine?

Correct spine depends on the complete bow and arrow setup, including bow speed, draw weight, draw length, finished shaft length, broadhead weight, insert weight and other components. Use Victory's current spine-selection recommendations or have the finished setup professionally matched.

What is MaxxKe Technology?

The HLR uses 1.5K MaxxKe carbon weave technology with high-modulus carbon construction to support quick recovery in flight, consistent spine behaviour and long-range performance.

Does the HLR use a 90-degree carbon weave?

Yes. The HLR incorporates a 90° carbon weave pattern as part of its advanced carbon construction.

Are HLR shafts spine aligned?

Yes. Every HLR shaft is digitally spine aligned to promote accuracy and shot-to-shot consistency.

Are HLR shafts weight matched?

Yes. Each dozen is weight matched to within approximately ±0.5 grains.

What does the ICE coating do?

Victory's ICE nano-ceramic coating provides a slick shaft surface designed to improve penetration and make arrows easier to remove from targets.

What insert comes with the HLR?

Each HLR shaft includes a 50-grain stainless-steel SHOK insert.

Can I adjust the HLR's FOC?

Yes. The HLR can be used with compatible Victory .204 back weights and alternative front components, allowing arrow builders to adjust finished arrow weight and FOC.

Can I use standard broadheads?

Yes. The SHOK adaptor is designed to accept standard 5/16" broadheads using an 8-32 thread.

What is the difference between the HLR and RIP XV?

Both use Victory's .204" small-diameter platform and are designed for speed and long-range performance. The RIP XV places greater emphasis on minimum shaft weight and extreme velocity, while the HLR balances speed with additional strength, durability and front-end weight.

What is the difference between the HLR and RIP TKO?

Both are performance-oriented .204" hunting shafts. The HLR is designed around a balance of high velocity, strength and long-range performance, while the RIP TKO uses its own TKO carbon construction and emphasizes a combination of kinetic energy, durability and penetration.

Speed. Strength. Long-Range Precision.

Victory HLR .204 Hunting Arrow Shafts combine a small-diameter platform with high-modulus carbon, 1.5K MaxxKe carbon weave technology, digital spine alignment and a 50-grain stainless-steel SHOK system. With three straightness grades and six spine options, the HLR provides a highly customizable foundation for hunters looking to balance speed, penetration, durability and long-range accuracy.
