Upgrade your single vision lens to the Double Vision Lens System!
Instead of aiming with a dot or pin, with the Double Vision Lens you simply look through the hole in the center of the tinted lens at where you want the arrow to go!
The Double Vision Lens is anegative-powered, drilled and tinted lens that is designed to work with a standardpositive poweredlens.
Pairing two lenses together allows for any center spot power to be coupled with any other outside power.
For example, using a +6X lens with a -4X Double Vision lens would result in a +6X center where the hole is located, and a -2X for the outer field of view that is tinted. Basically, take the positive power and subtract the negative power to determine the outer field of view power.

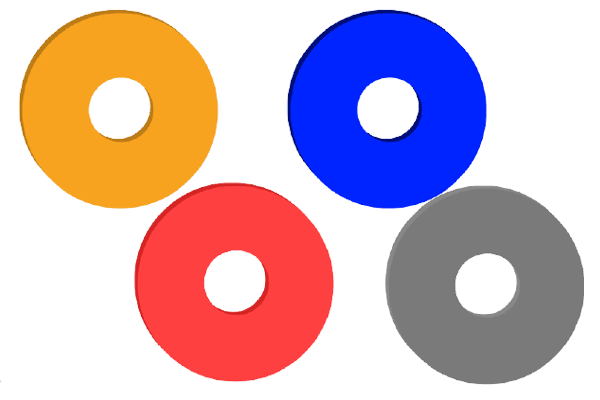

Double Vision Lenses available in the following color tints:
Amber, Blue, Smoke, and Red. Blue and Smoke are the most popular.
Double Vision lenses available with the following hole sizes:
.250” (1/4″).
.312” (5/16″).
.375” (3/8″).
NOTE: Custom hole sizes also available for an additional $10.00. There is a 1-3 week wait on custom hole sizes.
Must call 800-555-2856 to order custom lens.
The1.345”Double Vision Lens is compatible with the following Specialty Archery Scopes:
Versa² Target Scope (#V2TG) and Versa² Target Scope Kit (#V2KT)
1 5/8” (#040-1 and #040-1BLK) scope housing.
NOTE:An additional1 5/8” Ring (#0416 1 5/8”) is also required.
Optional Accessories:
640 Lens Field Cleaning Kit
641 Lens Brite Anti Fog Lens Cleaner
642 Micro Fiber Lens Cloth
616M Super Hood Medium or 616L Super Hood Large
615SS Sun Shield – Small (Black)
615RL Rain Shield – Small (Clear)
LC3 Lens Caddy 3 – holds 3 lenses up to 1.750″ in diameter
LC6 Lens Caddy 6 – holds 6 lenses up to 1.750″ in diameter
Share:
Specialty Archery Double Vision Lens, 1.345" Dia. For 040-1 1 5/8" And Versa2 Scopes
$79.99
Liquid error (snippets/sticky-product line 102): divided by 0
Off
Unit price
/
Tint:
Negative Lens Power:
Hole Size:
Specialty Archery Double Vision Lens, 1.345" Dia. For 040-1 1 5/8" And Versa2 Scopes
