Black Eagle Archery Front Of Center Outsert System F.O.C.O.S - 12 Pack

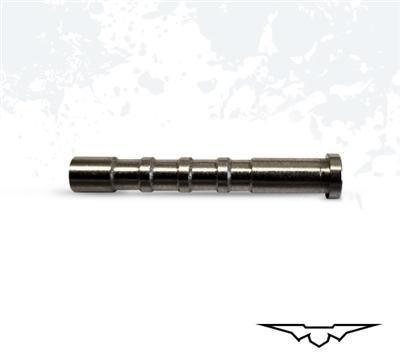

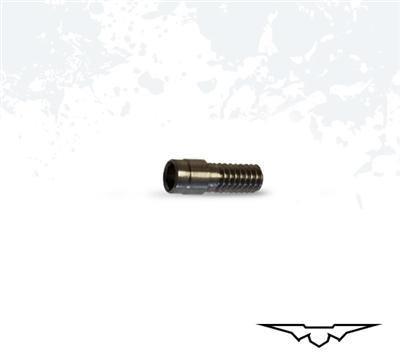

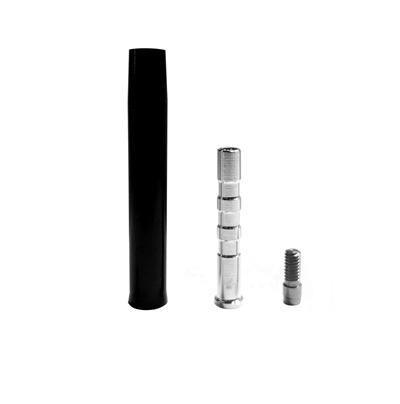

Our New Front Of Center Outsert System is designed for those that want more weight upfront and ease of use of Outserts. The F.O.C.O.S is made of 3 parts. One is the black anodized 7075 T6 aluminum alloy outsert or Stainless Steel Option. Two is a Stainless steel Retention post In The Aluminum Outserts Model and Aluminum in the Stainless Steel Outsert Model that also acts as a footer inside the shaft. The third part is the 3/32 allen head retention screw that allows for the Outserts to either be screwed or screwed and glued.(Not Tattooed) This system has been tested to over 550 Pounds per square inch of pull and they stay on! If you are looking for maximum penetration, Maximum F.O.C and shot after shot performance then the deadly combination of the Deep Impact, Instinct or X-Impact shafts then the F.O.C.O.S are sure to be a hit!
Insertion Depth of Arrow in Outsert is .610 almost 5/8" Outsert adds Approximately 1.090" to end of the Arrow
The Deep Impact & X-Impact Outsert Weights are a Follows:
ALUMINUM OUTSERTS TOTAL WEIGHT ALL SPINES WEIGH 80 Grains
STAINLESS STEEL OUTSERTS TOTAL WEIGHT ALL SPINES WEIGH 100 Grains
To install the F.O.C.O.S System
Select the right outsert for the right shaft.
Glue in Stainless steel retention Post
Dry fitting is recommended on all components. Slide Outserts over shaft and spin test (if you prefer)
If Outserts does not fit that is OK. Get some 100 Grit sand paper and lightly sand the shaft in a circular motion until the outsert fits fairly snug on shaft. Start slowly so you don't remove to much off the arrow.
You should have approximately 3/4 of an inch insertion on Aluminum Outserts
Wipe dust off of the shaft with Clean paper towel. (No Cleaners are recommended)
Again, Spin test to ensure concentricity.
Use a Silver or Black Sharpie and mark the Shaft and the Outsert for perfect alignment
Slide outsert over shaft and use the 3/32 Head retention Screw and Lock the Outsert in place!
If using glue See steps 11-15 .
We have tested Our fletching glue, insert/outsert glue and epoxy and all of them work great.
Apply a even amount of glue around the shaft to ensure you get enough glue in them to hold.
Slide Outsert On shaft rotating to make sure Glue/Epoxy is evenly dispersed
Use the 3/32 Head retention Screw and Lock the Outsert in place!
Once The outsert is glued on Screw is installed stand the arrow on the nock end to dry.
